Overleaf

Reimplementation of diagrams from https://www.overleaf.com/learn/latex/Feynman_diagrams

from pyfeyn2.feynmandiagram import FeynmanDiagram, Leg, Propagator, Vertex
from pyfeyn2.render.all import AllRender
from pyfeyn2.render.latex.dot import feynman_adjust_points

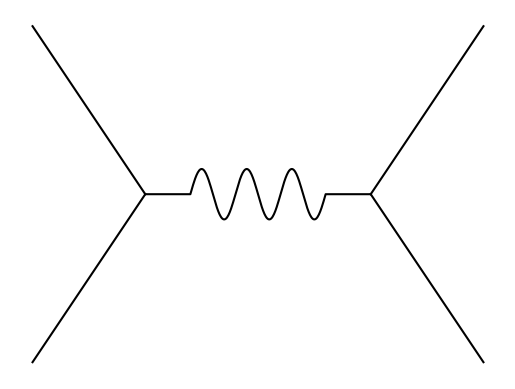

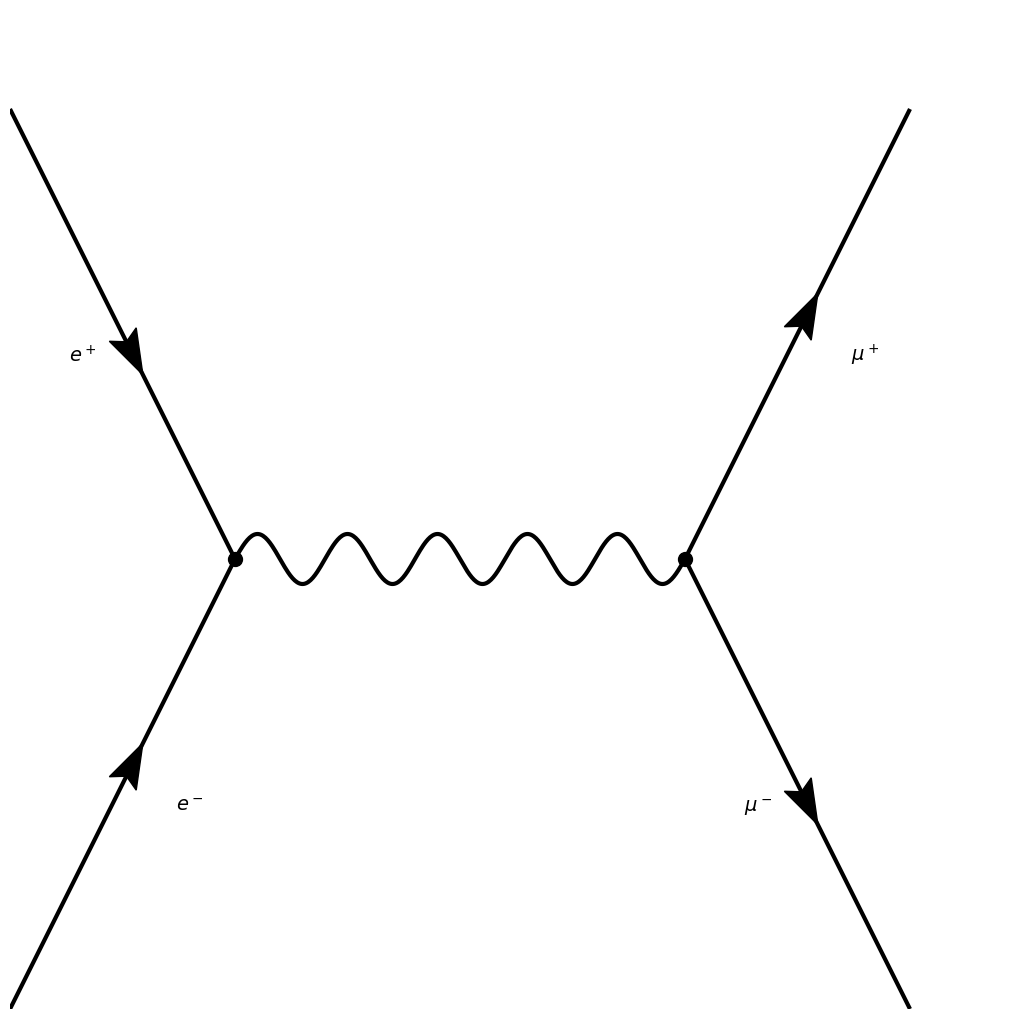

v1 = Vertex().set_xy(-1, 0)
v2 = Vertex().set_xy(1, 0)

fd = FeynmanDiagram().add(
    v1,
    v2,
    Propagator().connect(v1, v2).set_type("photon").put_style('opacity',0.2).put_style('color','red').set_momentum("$k$"),
    Leg().set_target(v1).set_xy(-2, 1).set_type("fermion").set_incoming().set_label("$e^+$").put_style('opacity',0.2),
    Leg().set_target(v1).set_xy(-2, -1).set_type("fermion").set_incoming().set_label("$e^-$").put_style('opacity',0.2),
    Leg().set_target(v2).set_xy(2, 1).set_type("fermion").set_outgoing().set_label("$\\mu^+$").put_style('opacity',0.2),
    Leg().set_target(v2).set_xy(2, -1).set_type("fermion").set_outgoing().set_label("$\\mu^-$").put_style('opacity',0.9),
)
ar = AllRender(fd)
ar.render()

pyx:

feynmp:

tikz:

dot:

feynman:

mpl:

ascii:









*                                      *
 ->                                 >--
   -- e+                           -
     --                      +  ---
       >-                      >
         *~~~~~~~~~~~~~~~~~~~*-
       >-                      >
     --                         ----
e- --                              -
 ->                                 >--
*                                      *

unicode:









*                                      *
 ↘↘                                 ↗↗↗
   ↘↘ e^                       +   ↗
     ↘↘ +                    μ^ ↗↗↗
       ↘↘                      ↗
         *~~~~~~~~~~~~~~~~~~~*↘
       ↗↗                      ↘
  -  ↗↗                         ↘↘↘μ^
e^ ↗↗                              ↘ -
 ↗↗                                 ↘↘↘
*                                      *

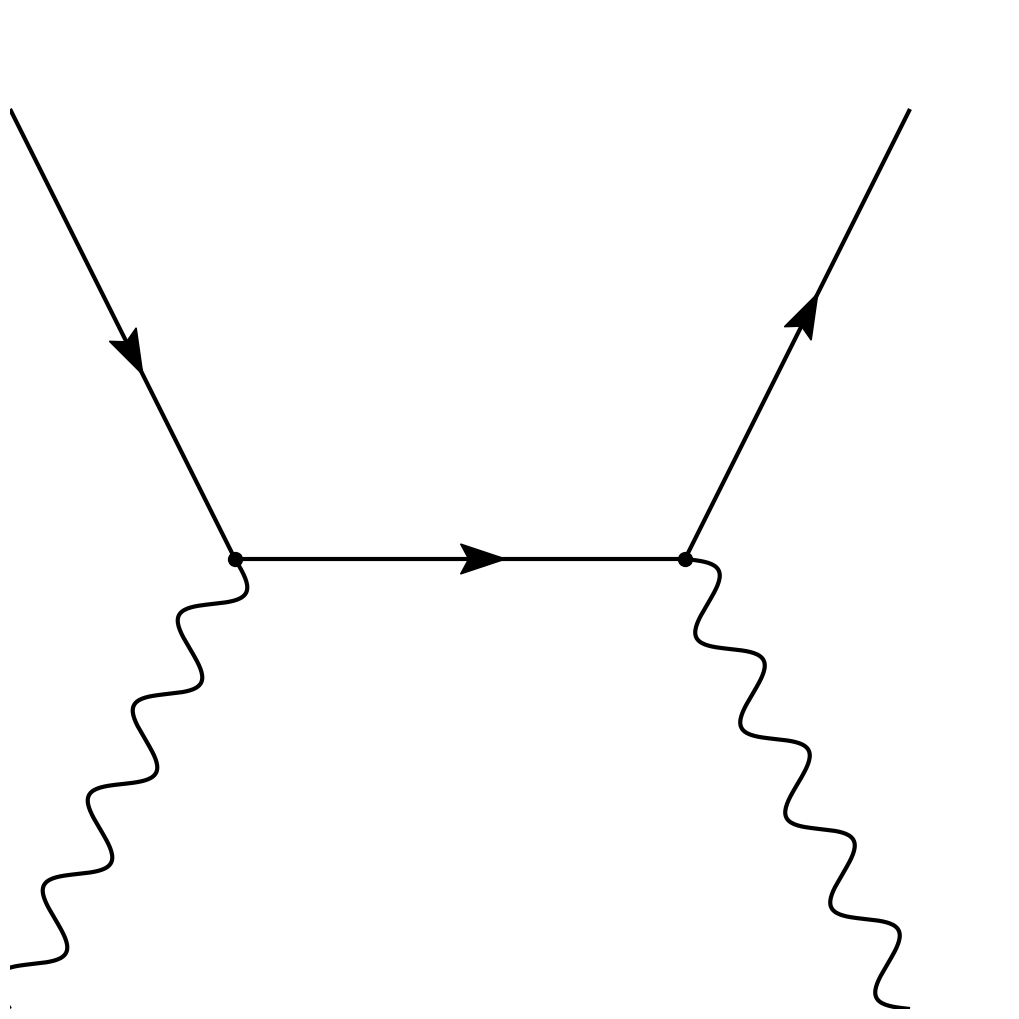

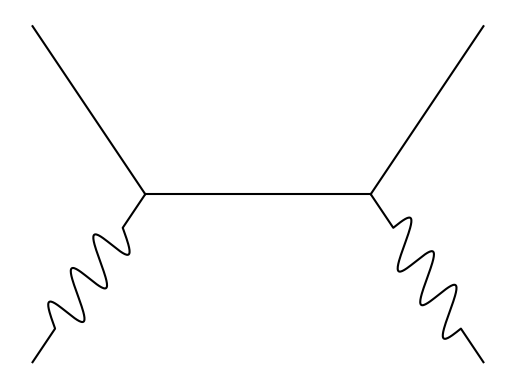

v1 = Vertex().set_xy(-1, 0)
v2 = Vertex().set_xy(1, 0)

fd = FeynmanDiagram().add(
    v1,
    v2,
    Propagator().connect(v1, v2).set_type("fermion"),
    Leg().set_target(v1).set_xy(-2, 1).set_type("fermion").set_incoming(),
    Leg().set_target(v1).set_xy(-2, -1).set_type("photon").set_incoming(),
    Leg().set_target(v2).set_xy(2, 1).set_type("fermion").set_outgoing(),
    Leg().set_target(v2).set_xy(2, -1).set_type("photon").set_outgoing(),
)
ar = AllRender(fd)
ar.render()

pyx:

feynmp:

tikz:

dot:

feynman:

mpl:

ascii:









*                                      *
 ->                                 >--
   --                              -
     --                         ---
       >-                      >
         *->---->---->---->--*~
       ~~                      ~
     ~~                         ~~~
   ~~                              ~
 ~~                                 ~~~
*                                      *

unicode:









*                                      *
 ↘↘                                 ↗↗↗
   ↘↘                              ↗
     ↘↘                         ↗↗↗
       ↘↘                      ↗
         *→→→→→→→→→→→→→→→→→→→*~
       ~~                      ~
     ~~                         ~~~
   ~~                              ~
 ~~                                 ~~~
*                                      *

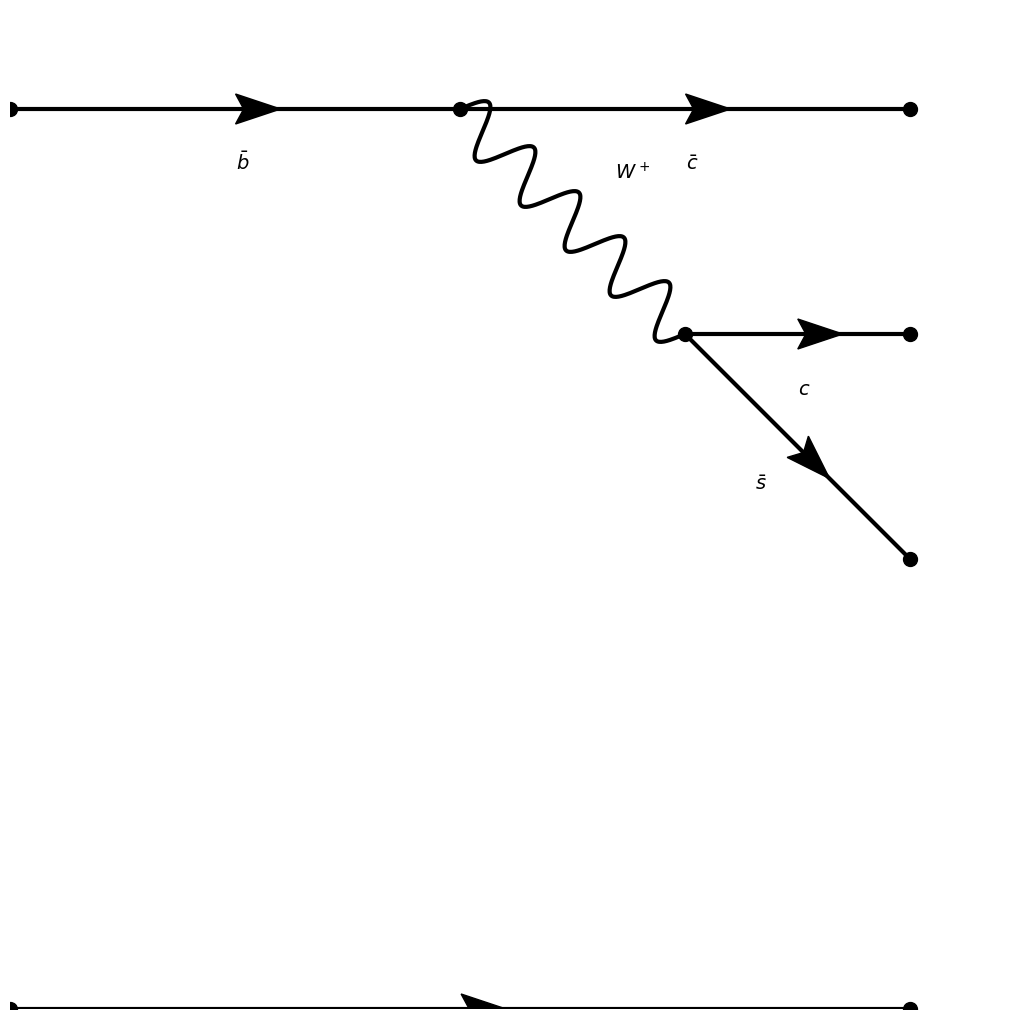

v1 = Vertex().set_xy(-2, -2)
v2 = Vertex().set_xy(2, -2)

i1 = Vertex().set_xy(-2, 2)
o1 = Vertex().set_xy(2,  2)
o2 = Vertex().set_xy(2,  1)
o3 = Vertex().set_xy(2,  0)

p1 = Vertex().set_xy(0,  2)
p2 = Vertex().set_xy(1,  1)


fd = FeynmanDiagram().add(
    v1,
    v2,
    Propagator().connect(v1,v2).set_type("fermion").set_label("$d$").set_tension(0),
    Leg().set_target(v1).set_point(v1).set_type("phantom").set_incoming(),
    Leg().set_target(v2).set_point(v2).set_type("phantom").set_outgoing(),

    i1,p1,p2,o1,o2,o3,
    Propagator().connect(p2,p1).set_type("boson").set_label("$W^+$"),
    Leg(label=r"$\bar{b}$").set_target(p1).set_point(i1).set_type("fermion").set_incoming(),
    Leg(label=r"$\bar{c}$").set_target(p1).set_point(o1).set_type("fermion").set_outgoing(),
    Leg(label="$c$").set_target(p2).set_point(o2).set_type("fermion").set_outgoing(),
    Leg(label=r"$\bar{s}$").set_target(p2).set_point(o3).set_type("fermion").set_outgoing()
)
ar = AllRender(fd)
ar.render()

pyx:

feynmp:

tikz:

dot:

feynman:

mpl:

ascii:






      _b                  _c


*->---->---->---->-*->---->---->---->--*
                    ~~~
                       ~        c
                      + ~~~
                       W   ~
                            ~*->---->--*
                               >
                                ---_s
                                   -
                                    >--
                                       *






             d


*->---->---->---->---->---->---->---->-*

unicode:






      b̅                  c̅


*→→→→→→→→→→→→→→→→→→*→→→→→→→→→→→→→→→→→→→*
                    ~~~
                       ~        c
                     +^ ~~~
                       W   ~
                            ~*↘→→→→→→→→*
                               ↘
                                ↘↘↘s̅
                                   ↘
                                    ↘↘↘
                                       *






             d


*→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→*
